Verifying Hooke's Law & Determining the Spring Constant
The Hooke's Law  is
To veryfy this relation experimentally we will need:
- At least one spring ( two or three would be better )
- A dynamometer ( for measuring the force )
- A ruler ( for measuring Δx
)
- Some statif
Modus operandi:
The spring will be place horizontally, with one extremity on a fixed support A and the other on
a support we can fixe at different places.The Ruler is placed on the table paraller to the spring.

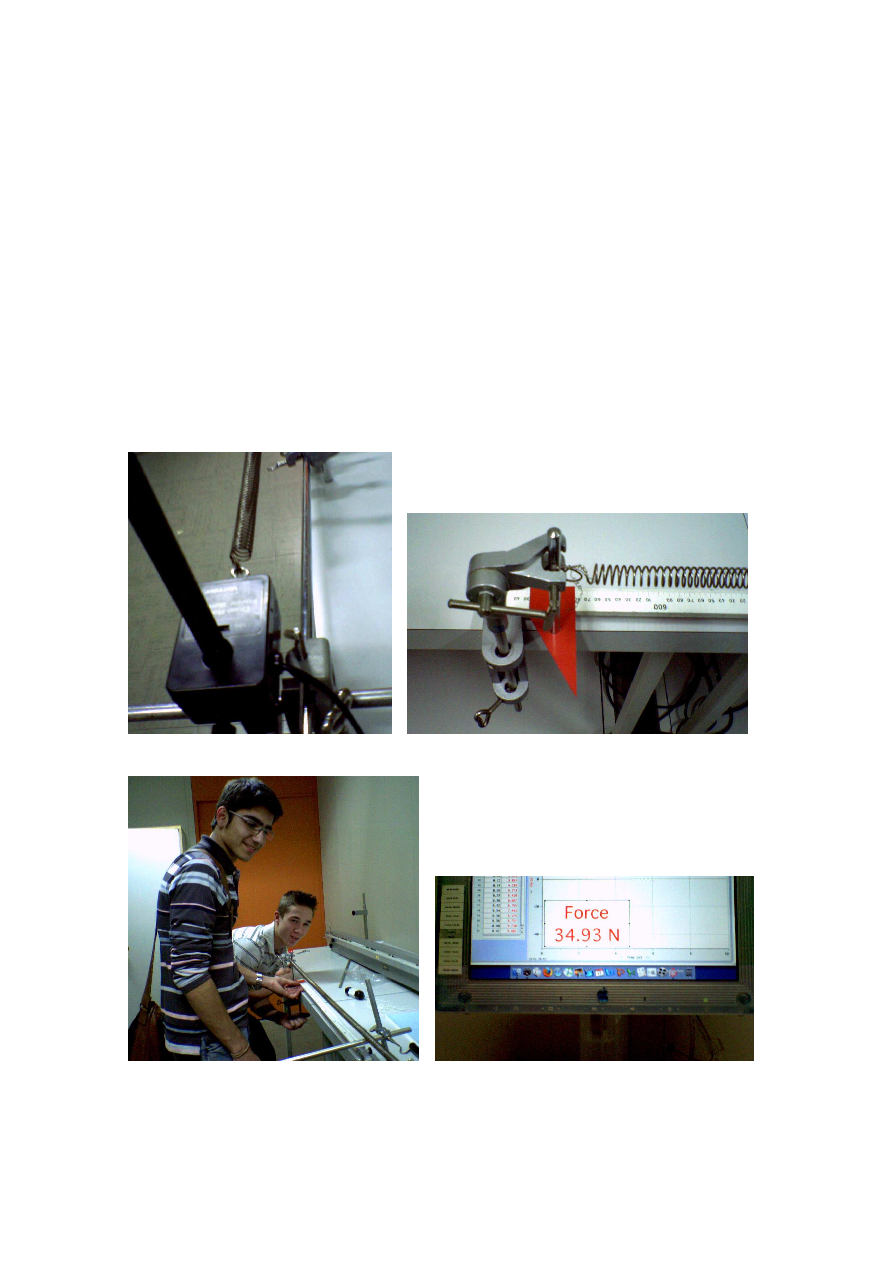

The dynamometer will be disposed between A and the spring like shown on picture 1
A cursor will be fixed on B, in order to show the measure of the lenght on the ruler.
We will move B as shown on picture 3
The digital dynamometer is connected to the computer via an interface, and we can read the
magnitude of the force for the different values of Δx.

Last IB1 results
(6 december 2010)
Last IB2 results
(2 december 2010
Dec 2008 First Results
Dec 2008 Second Results
